Produtos Danfoss

CI (série 6-50), Contatores

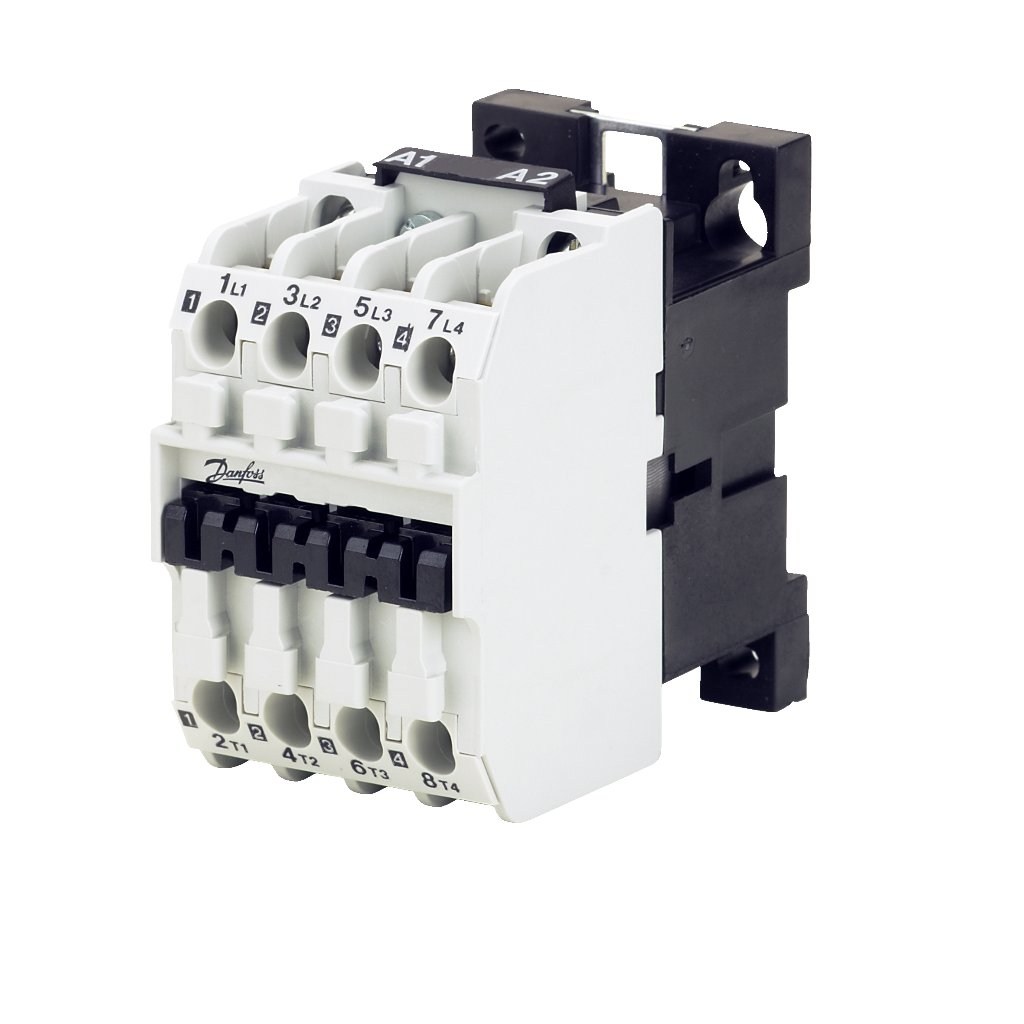

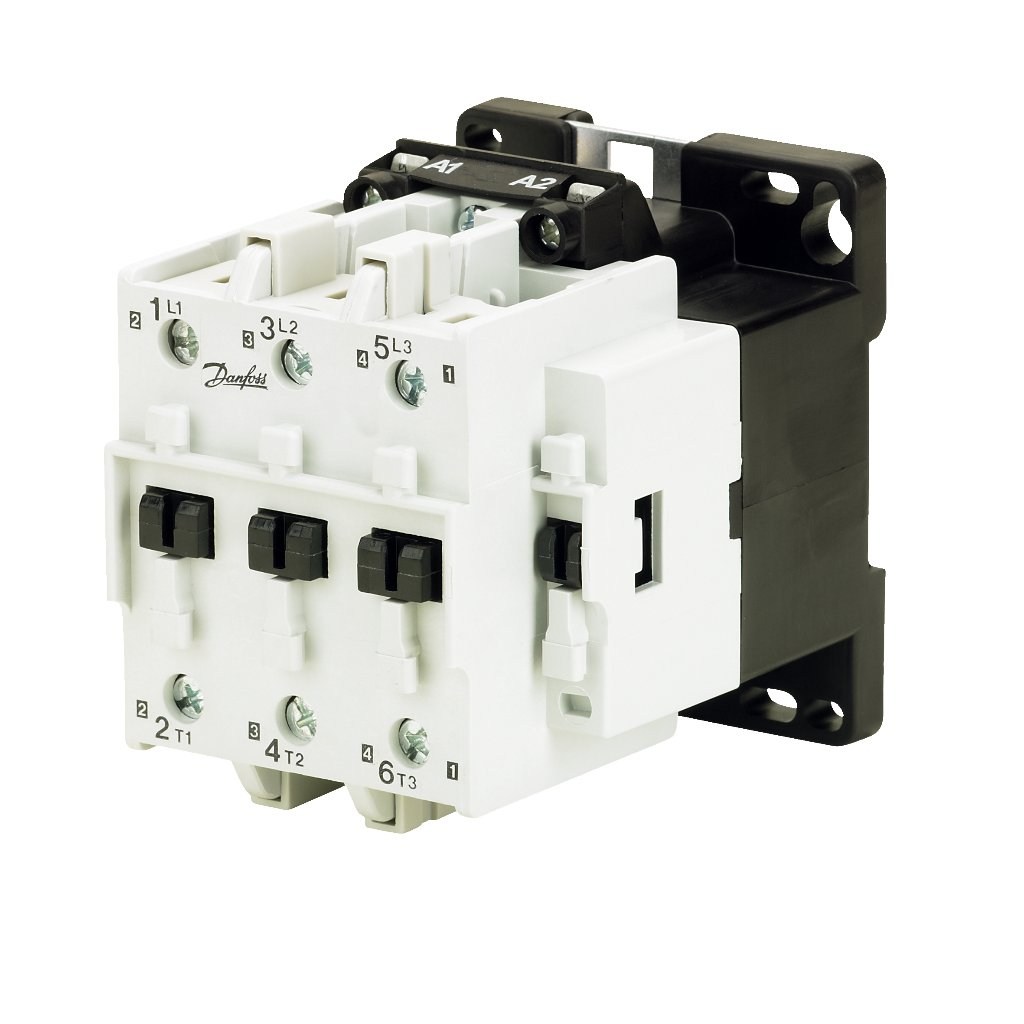

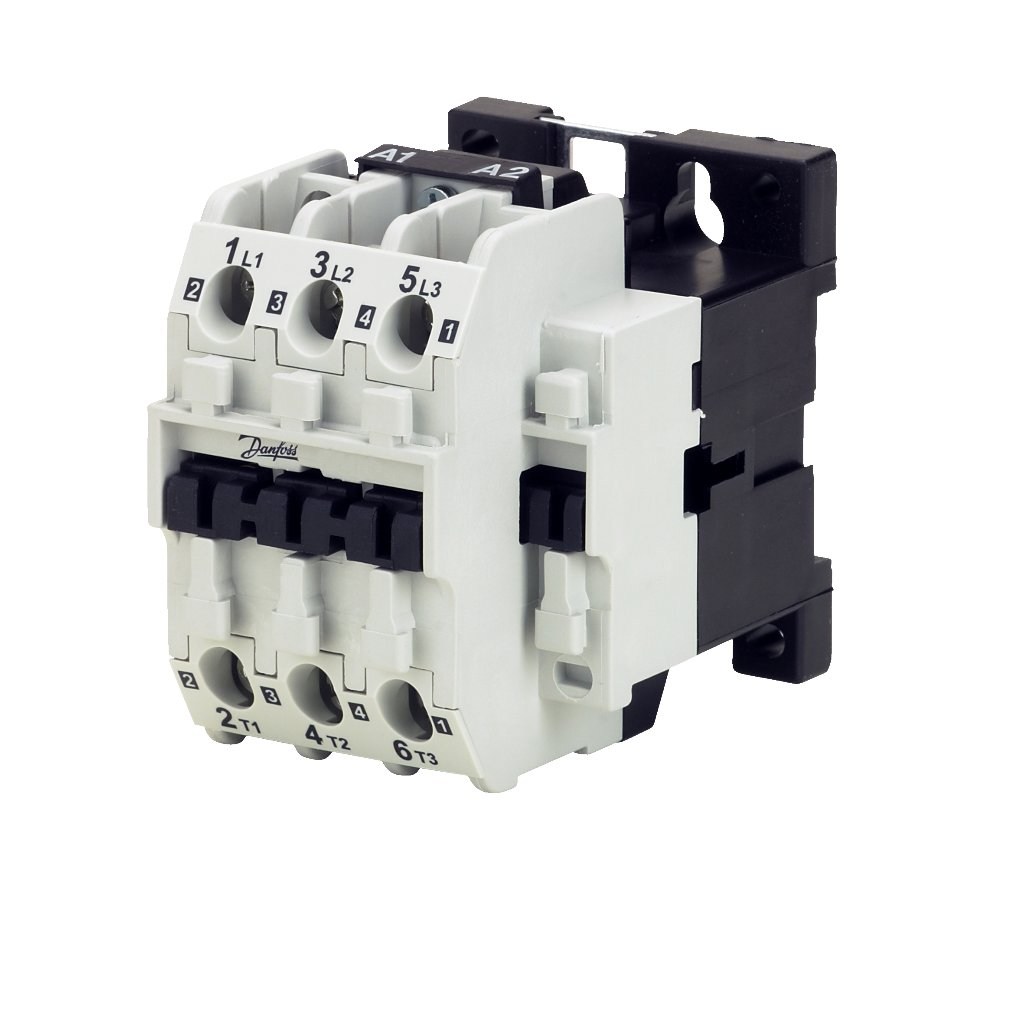

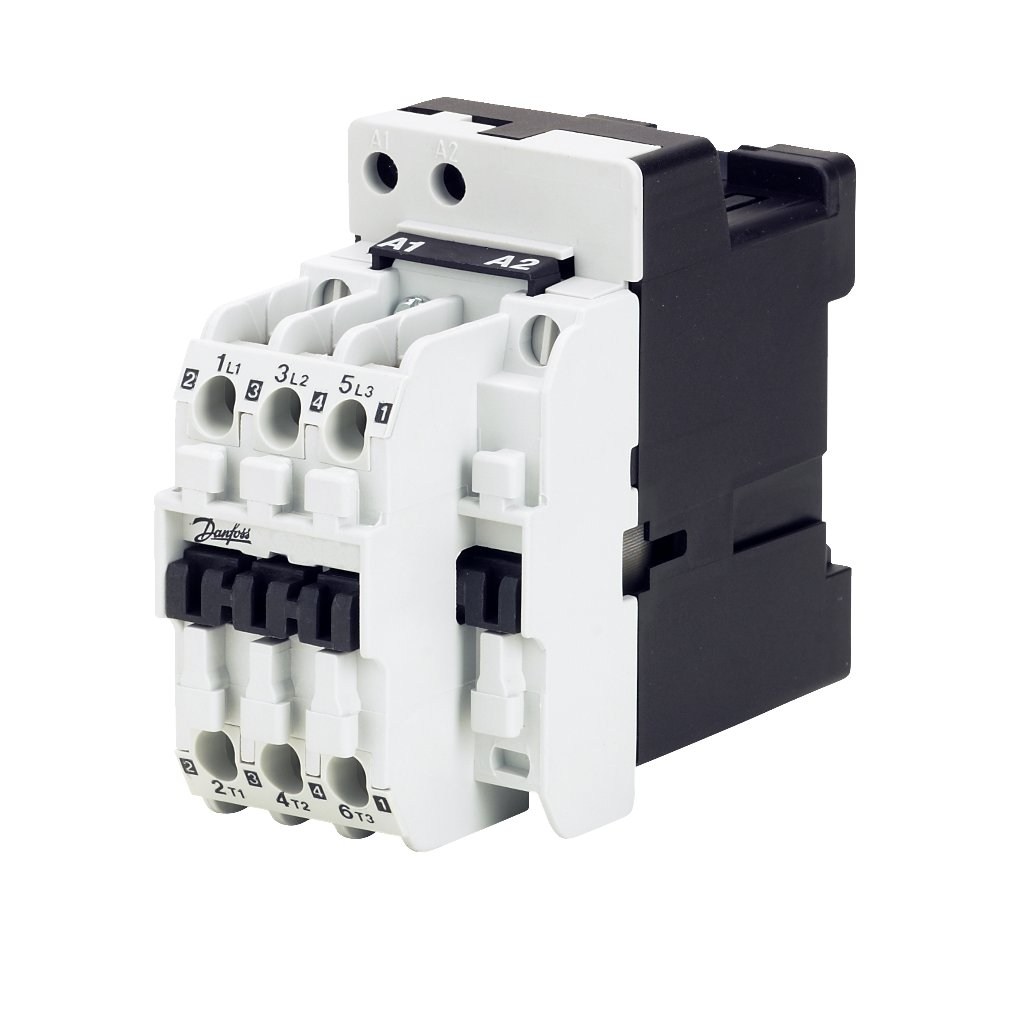

O programa do contator CI 6-50 é baseado em três tamanhos de estrutura. O menor tamanho de estrutura consiste no CI 6- 15 (2,2-7,5 kW), o médio contém a faixa CI 16-30 (7,5-15 kW) e o maior tamanho de estrutura é representado pelo CI 32-50 (15-25 kW). Todos os tamanhos de estrutura são fornecidos com três contatos principais NA. Os CI 6-15 estão disponíveis com quatro contatos principais NA.
  • Design compacto em três tamanhos de estrutura
  • Montagem com parafuso ou trilho DIN
  • Escala de potência 2,2 a 25 kW
  • Para bobinas ca/cc
Ver mais Ver menos
Seletor do número de código (77) Documentos (11) Imagens (1) FAQ (3)
Comparar Adicionar

N.º de código

Tipo

Alimentação AC-3 220-240 V

Alimentação AC-3 380-690 V

AC-3 Ie

AC-1 Ith aberto

AC-1 load Ithe, encl.

Cont. principais

Tensão da bobina 50 Hz

Tensão da bobina 60 Hz

Coil voltage [V] d.c.
037H001513 CI 6 1,5 kW 2,2 kW 6,0 A 20,0 A - 3 24 V 24 V -
037H001531 CI 6 1,5 kW 2,2 kW 6,0 A 20,0 A - 3 220 - 240 V - -
037H001532 CI 6 1,5 kW 2,2 kW 6,0 A 20,0 A - 3 220 - 230 V 220 V -
037H001537 CI 6 1,5 kW 2,2 kW 6,0 A 20,0 A - 3 380 - 400 V 440 V -
037H001538 CI 6 1,5 kW 2,2 kW 6,0 A 20,0 A - 3 415 V 500 V -
037H001831 CI 6 1,5 kW 2,2 kW 6,0 A 20,0 A - 4 220 - 240 V - -
037H001832 CI 6 1,5 kW 2,2 kW 6,0 A 20,0 A - 4 220 - 230 V 220 V -
037H002113 CI 9 2,2 kW 4,0 kW 9,0 A 25,0 A - 3 24 V 24 V -
037H002116 CI 9 2,2 kW 4,0 kW 9,0 A 25,0 A - 3 24 V 29 V -
037H002131 CI 9 2,2 kW 4,0 kW 9,0 A 25,0 A - 3 220 - 240 V - -
037H002132 CI 9 2,2 kW 4,0 kW 9,0 A 25,0 A - 3 220 - 230 V 220 V -
037H002137 CI 9 2,2 kW 4,0 kW 9,0 A 25,0 A - 3 380 - 400 V 440 V -
037H002194 CI 9 2,2 kW 4,0 kW 9,0 A 25,0 A - 3 500 V 600 V -
037H002231 CI 9 2,2 kW 4,0 kW 9,0 A 25,0 A - 4 220 - 240 V - -
037H002237 CI 9 2,2 kW 4,0 kW 9,0 A 25,0 A - 4 380 - 400 V 440 V -
037H003113 CI 12 3,0 kW 5,5 kW 12,0 A 25,0 A - 3 24 V 24 V -
037H003116 CI 12 3,0 kW 5,5 kW 12,0 A 25,0 A - 3 24 V 29 V -
037H003131 CI 12 3,0 kW 5,5 kW 12,0 A 25,0 A - 3 220 - 240 V - -
037H003132 CI 12 3,0 kW 5,5 kW 12,0 A 25,0 A - 3 220 - 230 V 220 V -
037H003137 CI 12 3,0 kW 5,5 kW 12,0 A 25,0 A - 3 380 - 400 V 440 V -
037H003231 CI 12 3,0 kW 5,5 kW 12,0 A 25,0 A - 4 220 - 240 V - -
037H003232 CI 12 3,0 kW 5,5 kW 12,0 A 25,0 A - 4 220 - 230 V 220 V -
037H003237 CI 12 3,0 kW 5,5 kW 12,0 A 25,0 A - 4 380 - 400 V 440 V -
037H004113 CI 16 4,0 kW 7,5 kW 16,0 A 40,0 A - 3 24 V 24 V -
037H004116 CI 16 4,0 kW 7,5 kW 16,0 A 40,0 A - 3 24 V 29 V -
037H004131 CI 16 4,0 kW 7,5 kW 16,0 A 40,0 A - 3 220 - 240 V - -
037H004132 CI 16 4,0 kW 7,5 kW 16,0 A 40,0 A - 3 220 - 230 V 220 V -
037H004137 CI 16 4,0 kW 7,5 kW 16,0 A 40,0 A - 3 380 - 400 V 440 V -
037H004138 CI 16 4,0 kW 7,5 kW 16,0 A 40,0 A - 3 415 V 500 V -
037H004513 CI 20 5,5 kW 10,0 kW 20,0 A 40,0 A - 3 24 V 24 V -
037H004523 CI 20 5,5 kW 10,0 kW 20,0 A 40,0 A - 3 110 V 110 V -
037H004531 CI 20 5,5 kW 10,0 kW 20,0 A 40,0 A - 3 220 - 240 V - -
037H004532 CI 20 5,5 kW 10,0 kW 20,0 A 40,0 A - 3 220 - 230 V 220 V -
037H004537 CI 20 5,5 kW 10,0 kW 20,0 A 40,0 A - 3 380 - 400 V 440 V -
037H004913 CI 15 4,0 kW 7,5 kW 16,0 A 25,0 A - 3 24 V 24 V -
037H004923 CI 15 4,0 kW 7,5 kW 16,0 A 25,0 A - 3 110 V 110 V -
037H004931 CI 15 4,0 kW 7,5 kW 16,0 A 25,0 A - 3 220 - 240 V - -
037H004932 CI 15 4,0 kW 7,5 kW 16,0 A 25,0 A - 3 220 - 230 V 220 V -
037H005031 CI 15 4,0 kW 7,5 kW 16,0 A 25,0 A - 4 220 - 240 V - -
037H005032 CI 15 4,0 kW 7,5 kW 16,0 A 25,0 A - 4 220 - 230 V 220 V -
037H005037 CI 15 4,0 kW 7,5 kW 16,0 A 25,0 A - 4 380 - 400 V 440 V -
037H005113 CI 25 5,5 kW 11,0 kW 25,0 A 40,0 A - 3 24 V 24 V -
037H005116 CI 25 5,5 kW 11,0 kW 25,0 A 40,0 A - 3 24 V 29 V -
037H005117 CI 25 5,5 kW 11,0 kW 25,0 A 40,0 A - 3 42 V 50 V -
037H005128 CI 25 5,5 kW 11,0 kW 25,0 A 40,0 A - 3 - 208 - 230 V -
037H005131 CI 25 5,5 kW 11,0 kW 25,0 A 40,0 A - 3 220 - 240 V - -
037H005132 CI 25 5,5 kW 11,0 kW 25,0 A 40,0 A - 3 220 - 230 V 220 V -
037H005137 CI 25 5,5 kW 11,0 kW 25,0 A 40,0 A - 3 380 - 400 V 440 V -
037H005194 CI 25 5,5 kW 11,0 kW 25,0 A 40,0 A - 3 500 V 600 V -
037H005513 CI 30 8,5 kW 15,0 kW 32,0 A 40,0 A - 3 24 V 24 V -
037H005516 CI 30 8,5 kW 15,0 kW 32,0 A 40,0 A - 3 24 V 29 V -
037H005528 CI 30 8,5 kW 15,0 kW 32,0 A 40,0 A - 3 - 208 - 230 V -
037H005531 CI 30 8,5 kW 15,0 kW 32,0 A 40,0 A - 3 220 - 240 V - -
037H005532 CI 30 8,5 kW 15,0 kW 32,0 A 40,0 A - 3 220 - 230 V 220 V -
037H005537 CI 30 8,5 kW 15,0 kW 32,0 A 40,0 A - 3 380 - 400 V 440 V -
037H005613 CI 37 10,0 kW 18,5 kW 37,0 A 80,0 A - 3 24 V 24 V -
037H005631 CI 37 10,0 kW 18,5 kW 37,0 A 80,0 A - 3 220 - 230 V - -
037H005632 CI 37 10,0 kW 18,5 kW 37,0 A 80,0 A - 3 220 - 230 V 220 V -
037H005637 CI 37 10,0 kW 18,5 kW 37,0 A 80,0 A - 3 380 - 400 V 440 V -
037H006113 CI 32 8,5 kW 15,0 kW 32,0 A 63,0 A - 3 24 V 24 V -
037H006131 CI 32 8,5 kW 15,0 kW 32,0 A 63,0 A - 3 220 - 230 V - -
037H006132 CI 32 8,5 kW 15,0 kW 32,0 A 63,0 A - 3 220 - 230 V 220 V -
037H006137 CI 32 8,5 kW 15,0 kW 32,0 A 63,0 A - 3 380 - 400 V 440 V -
037H007113 CI 45 11,0 kW 22,0 kW 45,0 A 80,0 A - 3 24 V 24 V -
037H007131 CI 45 11,0 kW 22,0 kW 45,0 A 80,0 A - 3 220 - 230 V - -
037H007132 CI 45 11,0 kW 22,0 kW 45,0 A 80,0 A - 3 220 - 230 V 220 V -
037H007137 CI 45 11,0 kW 22,0 kW 45,0 A 80,0 A - 3 380 - 400 V 440 V -
037H007138 CI 45 11,0 kW 22,0 kW 45,0 A 80,0 A - 3 415 V 500 V -
037H008013 CI 50 15,0 kW 25,0 kW 52,0 A 80,0 A - 3 24 V 24 V -
037H008031 CI 50 15,0 kW 25,0 kW 52,0 A 80,0 A - 3 220 - 230 V - -
037H008032 CI 50 15,0 kW 25,0 kW 52,0 A 80,0 A - 3 220 - 230 V 220 V -
037H008037 CI 50 15,0 kW 25,0 kW 52,0 A 80,0 A - 3 380 - 400 V 440 V -
037H800366 CI 15DC12 4,0 kW 7,5 kW 16,0 A 25,0 A - 3 - - -
037H807166 CI 9DC24 2,2 kW 4,0 kW 9,0 A 25,0 A - 3 - - -
037H807366 CI 15DC24 4,0 kW 7,5 kW 16,0 A 25,0 A - 3 - - -
037H807666 CI 25DC24 5,5 kW 11,0 kW 25,0 A 40,0 A - 3 - - -
037H807766 CI 30DC24 7,5 kW 15,0 kW 30,0 A 40,0 A - 3 - - -
